SMALLRIG 4234 MOUNT PLATE KIT UNIVERSAL

SmallRig 4234 Arca-Swiss / Manfrotto Compatible Mount Plate Kit

• Strong compatibility, adjustable width, compatible with most Arca quick release plates
• Anti-false-touch design, built-in anti-off pin, double security for your equipment
• Built-in Manfrotto 501 at the bottom, allowing for easy switching between Arca-Swiss and Manfrotto
• Top Arca quick release plate is compatible with DJI RS series stabilizers

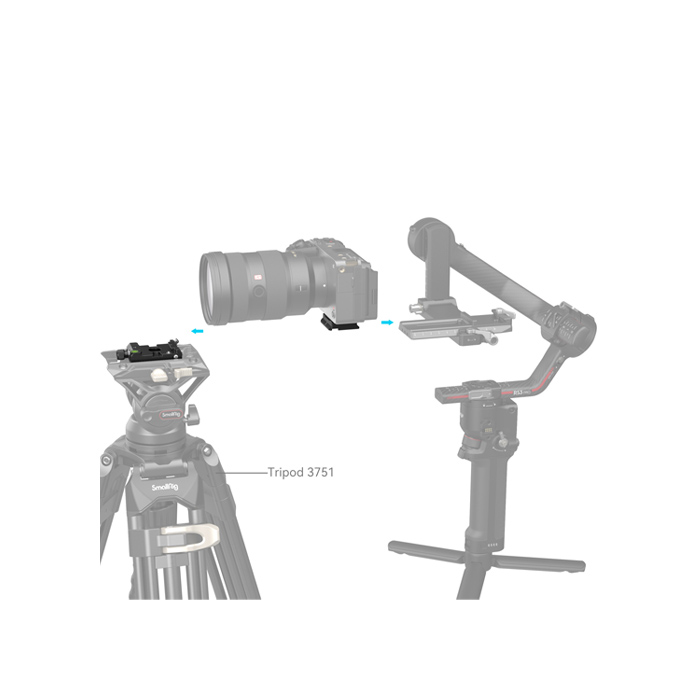

• Enables quick transitions between handheld, stabilizer and tripod

SmallRig 4234 Arca-Swiss / Manfrotto Compatible Mount Plate Kit is designed to streamline scene transitions for users. Its width can be quickly adjusted via a knob, ensuring compatibility with most Arca quick release plates on the market—eliminating any compatibility concerns.
The included Arca quick release plate is fully compatible with DJI RS series stabilizers, allowing for swift transitions between handheld, stabilizer, and tripod setups.

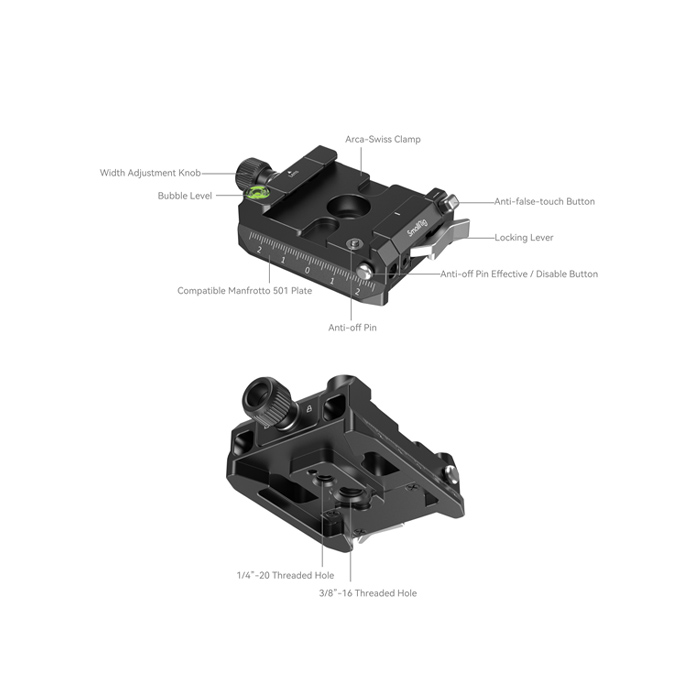

The locking lever features a two-stage unlocking design and includes a built-in anti-dislodgement pin, guarding against accidental adjustments and ensuring equipment safety.
With a built-in Manfrotto 501 mount at the bottom, it's easy to switch between Arca and Manfrotto systems quickly. Additionally, the plate includes built-in 1/4"-20 threaded holes and a 3/8"-16 threaded hole, making it easy to expand with other accessories.

Multiple Safeguards, Zero Accidents

Two-stage unlocking system to prevent accidental releases and provide peace of mind. The built-in Anti-dismounting system prevents the quickrelease plate from accidentally detaching when loosened.

Modular Design

The top Arca-Swiss mount plate can be used independently to quickly switch from Ara-Swiss compatible products like sliders and gimbals, to Manfrotto 501 compatible tripod heads.

In the Box:

• 1 x Arca-Swiss / Manfrotto Compatible Mount Plate Kit
• 1 x Flat-head Screwdriver
• 1 x User Manual

Specifications:

• Product Dimensions: 80 x 79.4 x32mm
• Product Weight: 116±5g
• Materials: Aluminum Alloy, Stainless Steel
