PORTKEYS HS8, 8" MONITOR

Portkeys HS8, 8” HDMI/SDI Monitor

• 8 inch, 1100 nit, 4K HDMI/3G-SDI monitor
• SDl /HDMl conversion
• 100mm X 100mm VESA interface
• Dual battery plate
• Both SDl and HDMl OUT can be loaded with LUT output
• Removable wireless video transmission backplane
• NPF H and V power supply system (patent design)

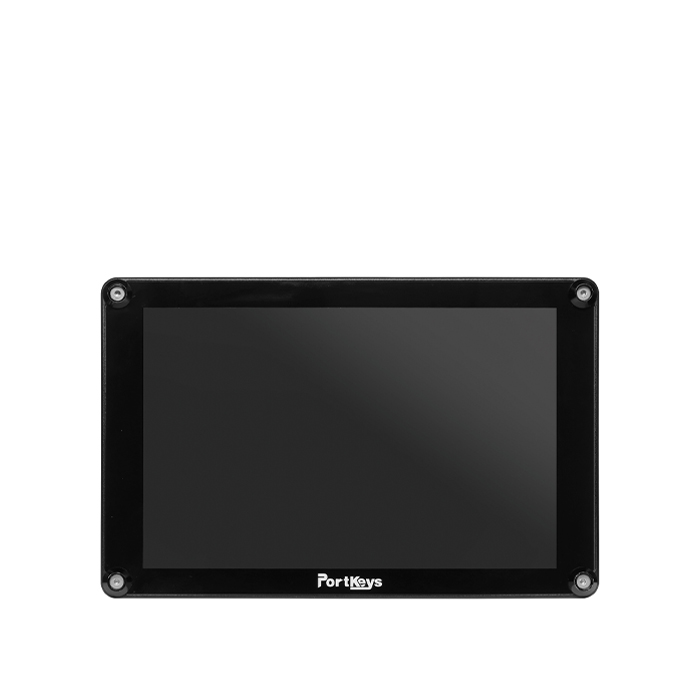

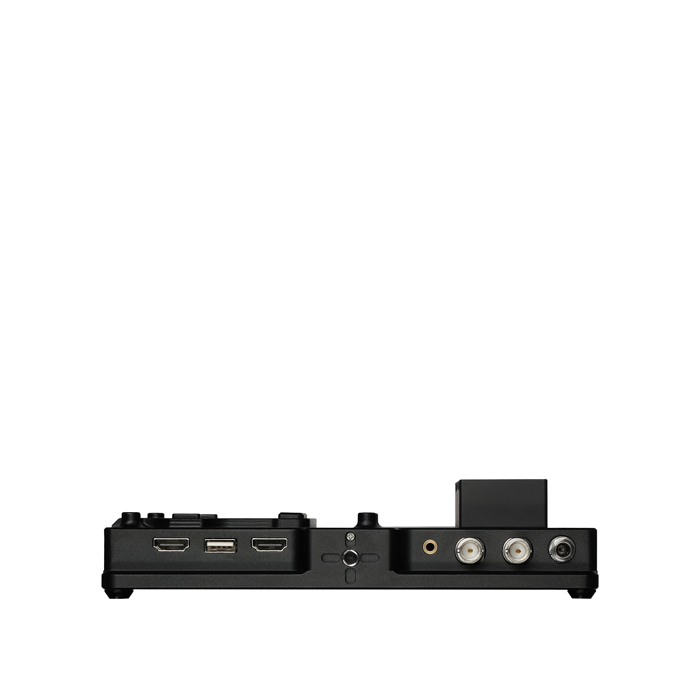

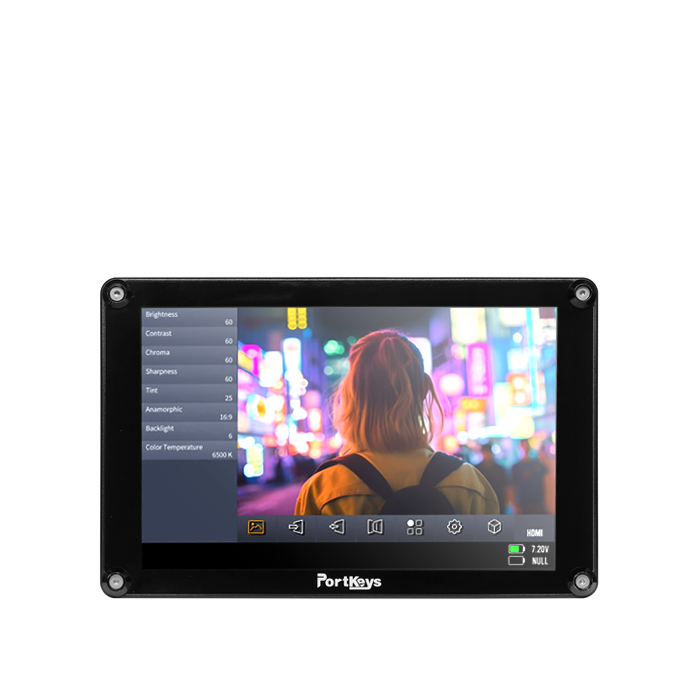

This new monitor from Portkeys has a bright 1100 nits 8 inch 1920 X 1200 display with a 1000:1 contrast ratio. It features both HDMI IN/OUT and 3G-SDI IN/OUT as well as SDI/HDMI Conversion. Both SDI and HDMI OUT can be loaded with 3D LUT’s.

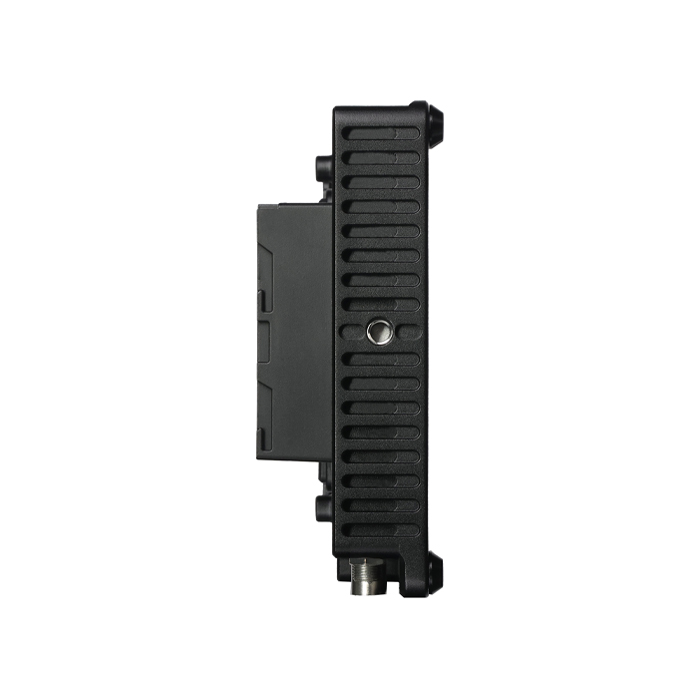

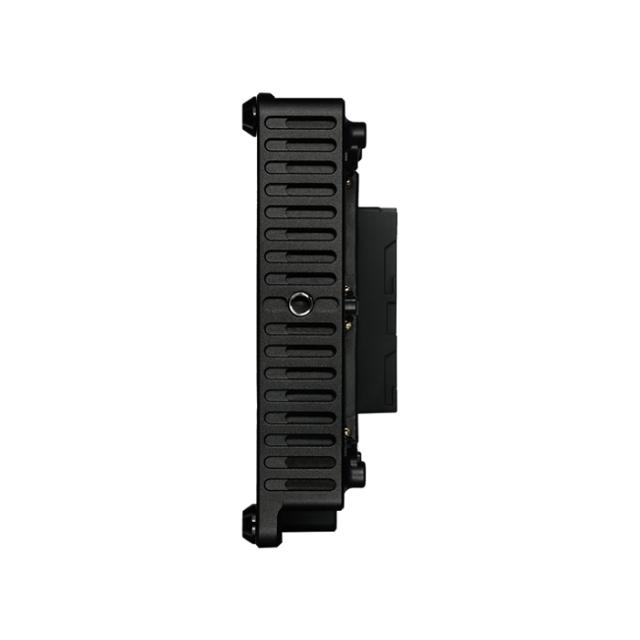

The aluminum alloy CNC housing of the monitor provides faster heat dissipation and a more rugged and durable monitor. The monitor is fitted with multiple 1/4" screw holes on top, bottom and both sides of the monitor. On the back, you will also find the option to mount the monitor via the 100 x 100mm VESA interface.

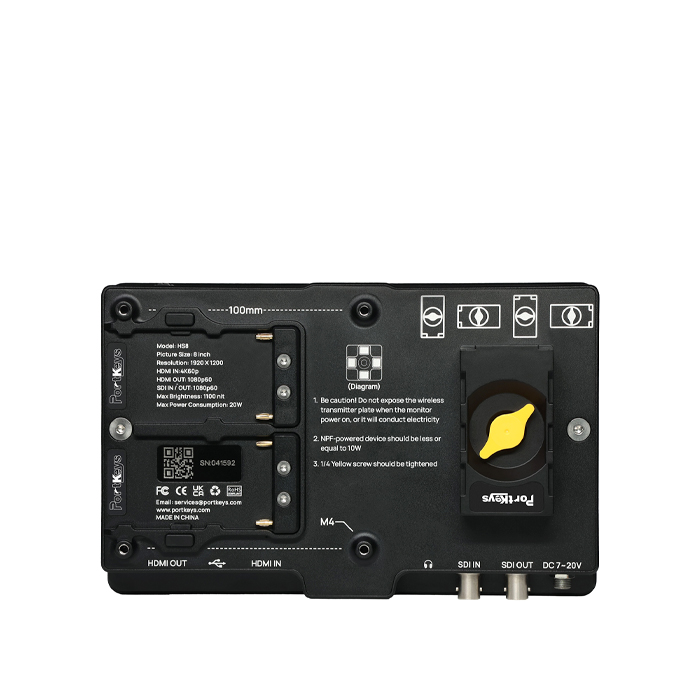

There are multiple ways to power the Portkeys HS8 monitor. Dual NP-F (Sony L series) battery compartment, as well as a screw-in DC port. The back also features a NPF H and V power supply system (patent design) that allows for mounting and supplying power to a wide range of wireless video transmitters.

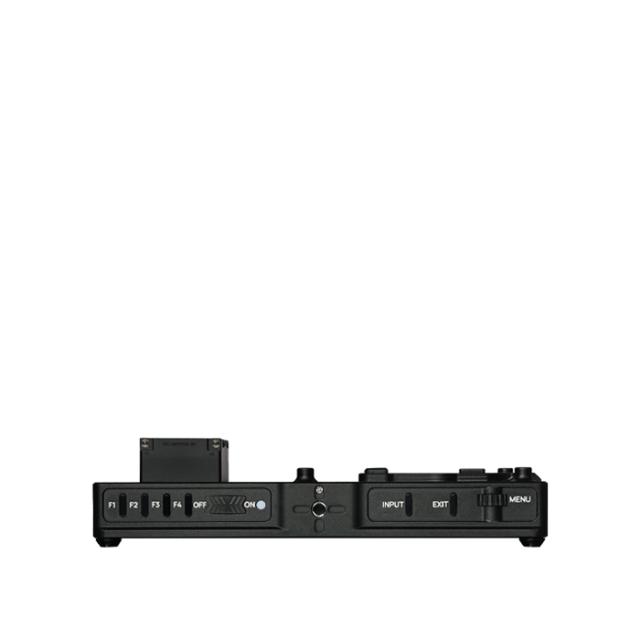

The HS8 features the brand new user interface, with a clear, modern touch navigation. It is packed with functions and tools for monitoring, including but not limited to; focus peaking, false color, zebra, LUM/RGB/VEC waveform, 3D LUT, anamorphic desqueeze and much more. These tools are all easily accessible from the touchscreen interface or with the four custom function keys on top of the monitor.
