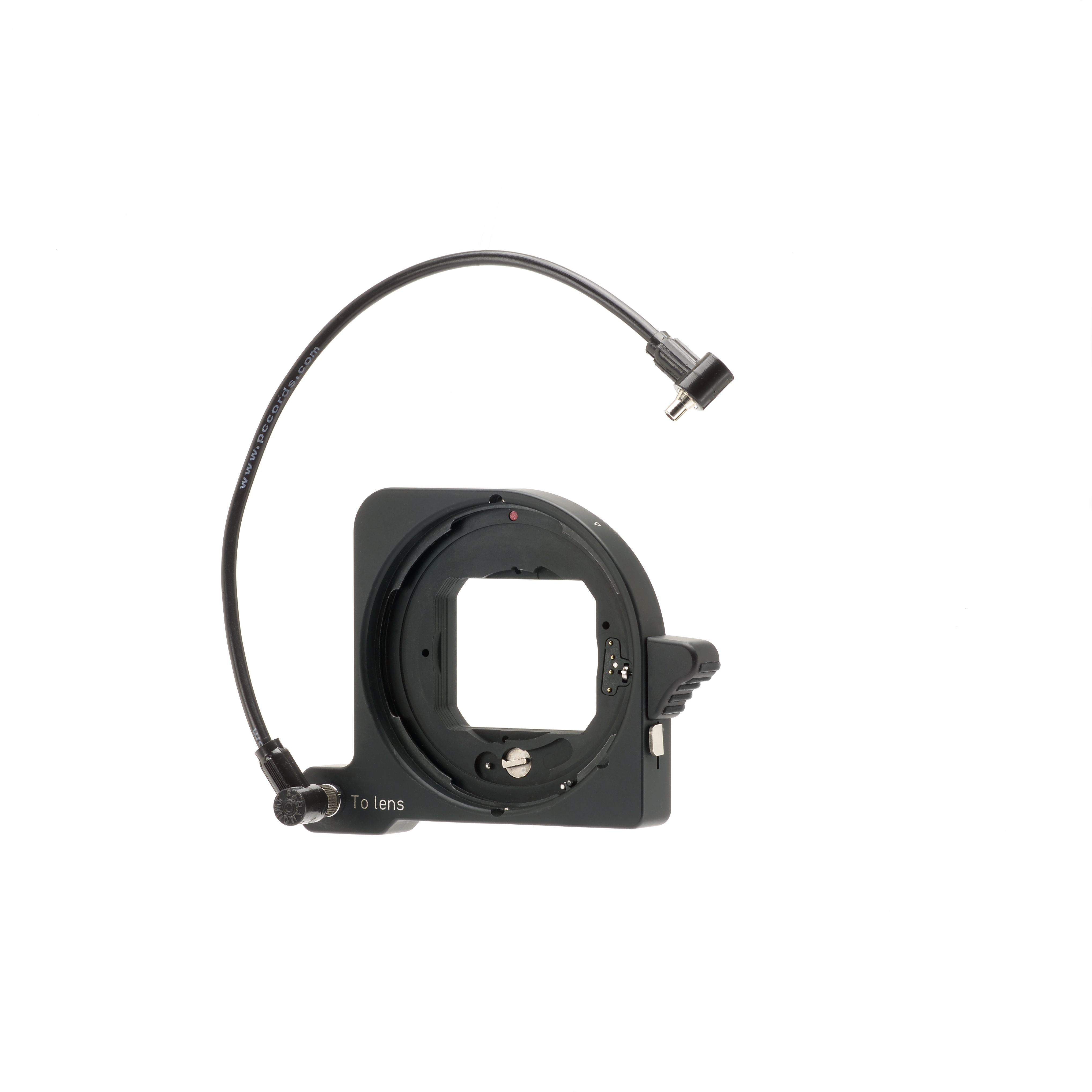

Hasselblad H CF Lens Adapter

The CF lens adapter for the H-system allows photographers to use all Carl Zeiss C-type lenses from the V System on H cameras. Integral processors for data conversion bridge the two systems to access a number of the H display and lens-control functions.

Functions such as autofocus and continuous drive are an integral part of the H System only so they are therefore not available when C lenses are used.
Likewise, as the light measuring and aperture/ shutter controls are also different between the two systems, then camera operation differs too. Some other restrictions also apply regarding specific lenses or combinations of lenses/converters.

The precision machined CF lens adapter weighs only 140 g and fits between the H body and the Zeiss lens. The automatic focusing system in the H camera can be used to guide the manual setting of focus through the use of the focus confirmation signal displayed in the viewfinder.
Light is measured at full aperture with all lenses, which produces an aperture and shutter speed data display in the camera for the manual setting of the exposure.
Owners of CFE version lenses receive an additional benefit as the preset aperture setting is automatically transferred to the camera.
Shutter cocking is performed manually with all lenses and is quickly accomplished by an easily accessible lever on the side of the adapter.

The CF Adapter allows:

  • Light metering at full aperture.
  • Electronic focus confirmation on viewfinder display.
  • Exploitation of databus connection with CFE lenses.
  • Access to shutter speeds (manually set on lens) from 1s–1/500s including B and T mode.

Dimensions:

  • 98 × 86 × 22mm
  • Weight: 140g

Compatibility:

  • All C-type lenses

Specifikationer

Producent Hasselblad
Kategori Objektiv adapter
