SMALLRIG 3628 L-BRACKET FOR CANON EOS R3 //

SmallRig 3628 L-Bracket for Canon EOS R3

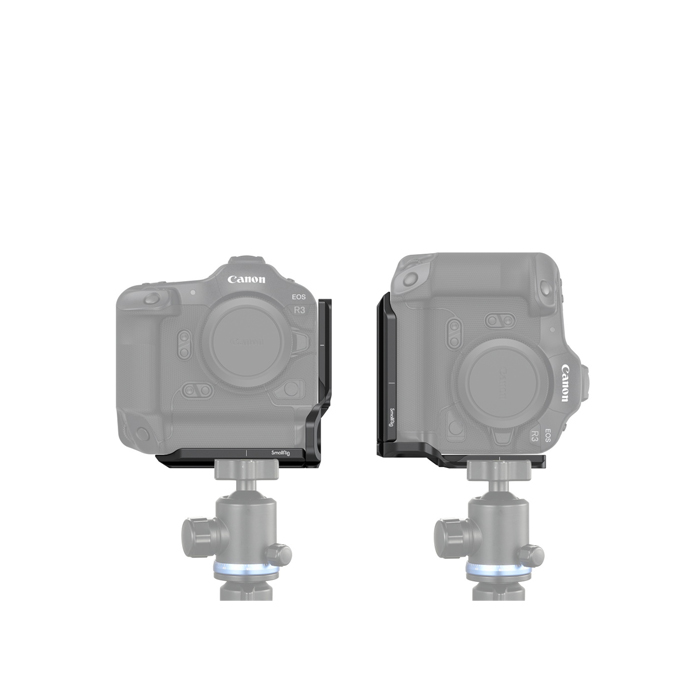

• Arca-compatible side and base plate enable quick switch between horizontal and vertical orientation shooting
• Secured via a 1/4 screw and an anti-twist screw at the bottom
• Replace the battery without removing the L-Bracket
• Extendable side plate leaves room for cables
• Built-in mounting ports, such as 1/4"-20, 3/8"-16 threaded holes, wrist strap holes, satisfy multi-scene shooting
• Built-in magnetic slotted screwdriver for easy disassembly and assembly

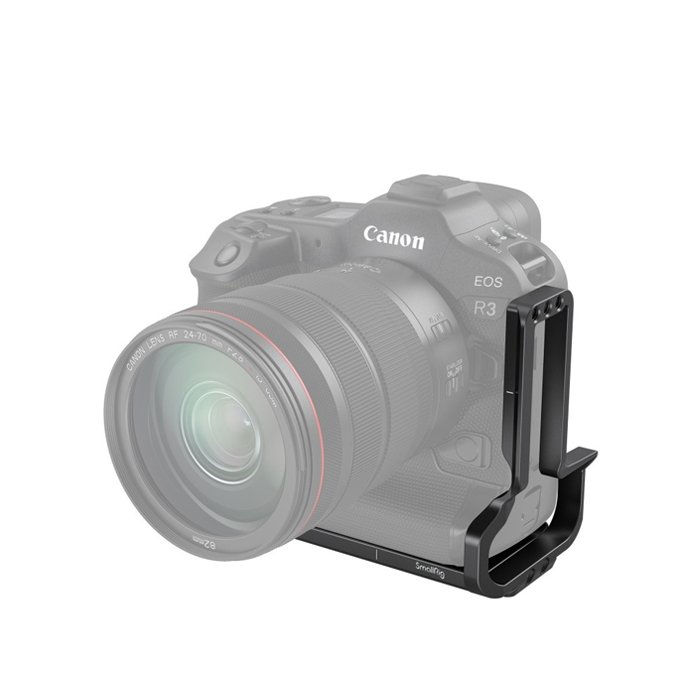

SmallRig L-Bracket for Canon EOS R3 3628 is designed for quick switch between horizontal and vertical shooting.

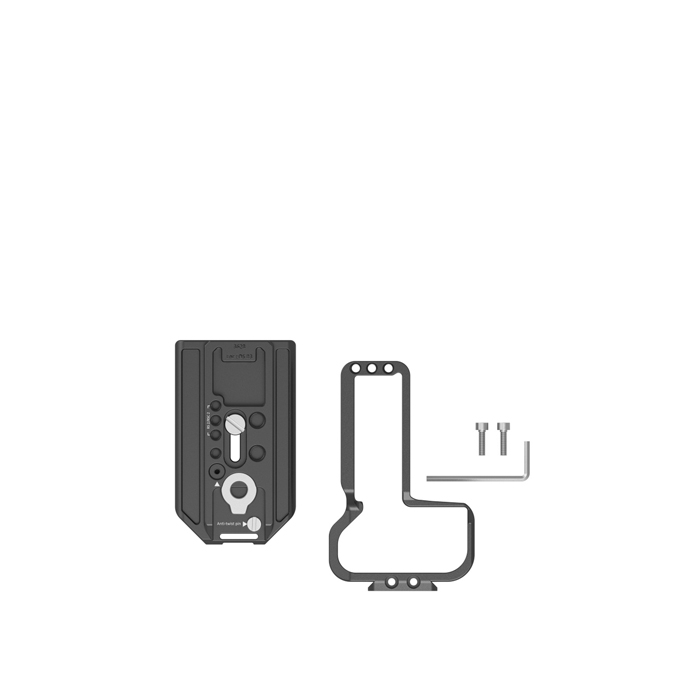

It is locked into the bottom of a camera via a 1/4"-20 screw and an anti-twist screw, fitted with a silicone pad to prevent scratches and deflection, and can be disassembled into an Arca-compatible base plate and side plate, both with lens center mark.

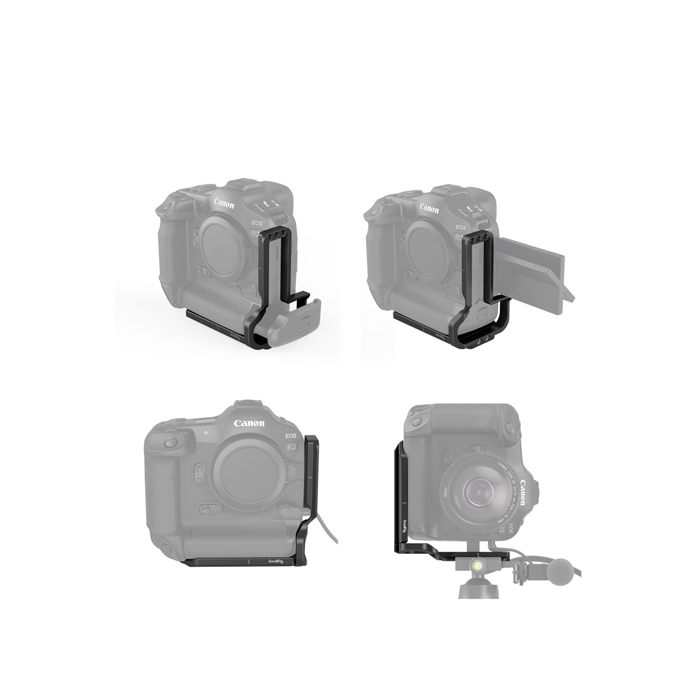

The L-Bracket does not block ports, buttons and even allows the flipping of LCD screens to a certain extent. You can replace the battery without removing the L-Bracket and is also compatible.

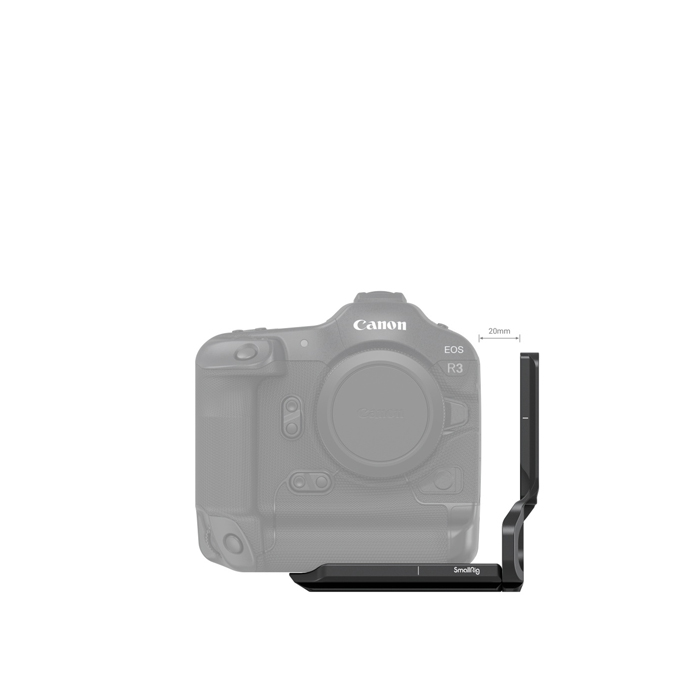

Extendable side plate leaves room for HDMI and USB cables.
Base plate is featuring mounting points such as 1/4"-20, 3/8"-16 threaded holes and wrist strap holes supports quick release plate, tripod, and the quick-release plate of DJI RS 2/RSC 2 stabilizers, etc.
In addition, a slotted screwdriver is accessible for easy disassembly and assembly.

Note:

• User manual is included.
• To stretch the L-Bracket, you need to remove an anti-twist screw with the built-in flat-head spanner.

Compatibility:

• Canon EOS R3

Specifications:

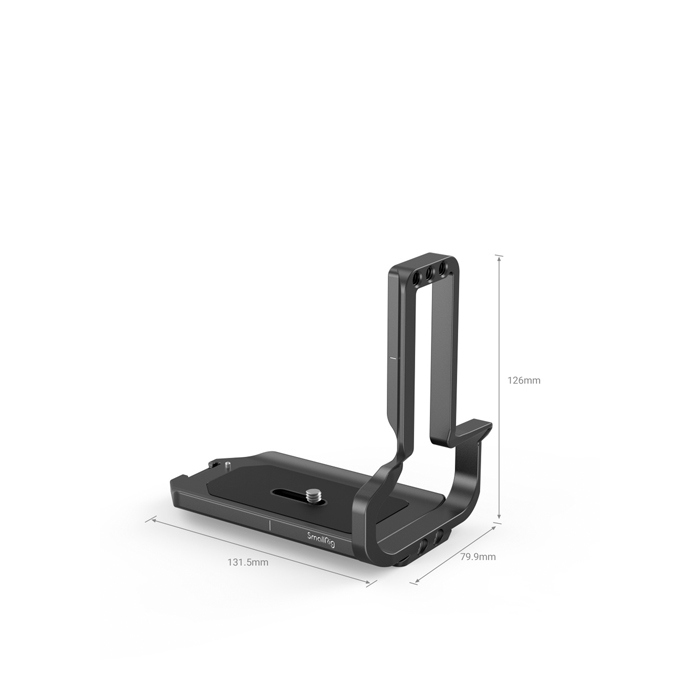

• Product Dimensions: 131,5 x 79,9 x 126mm
• Net Weight: 158g
• Material: Aluminum Alloy
